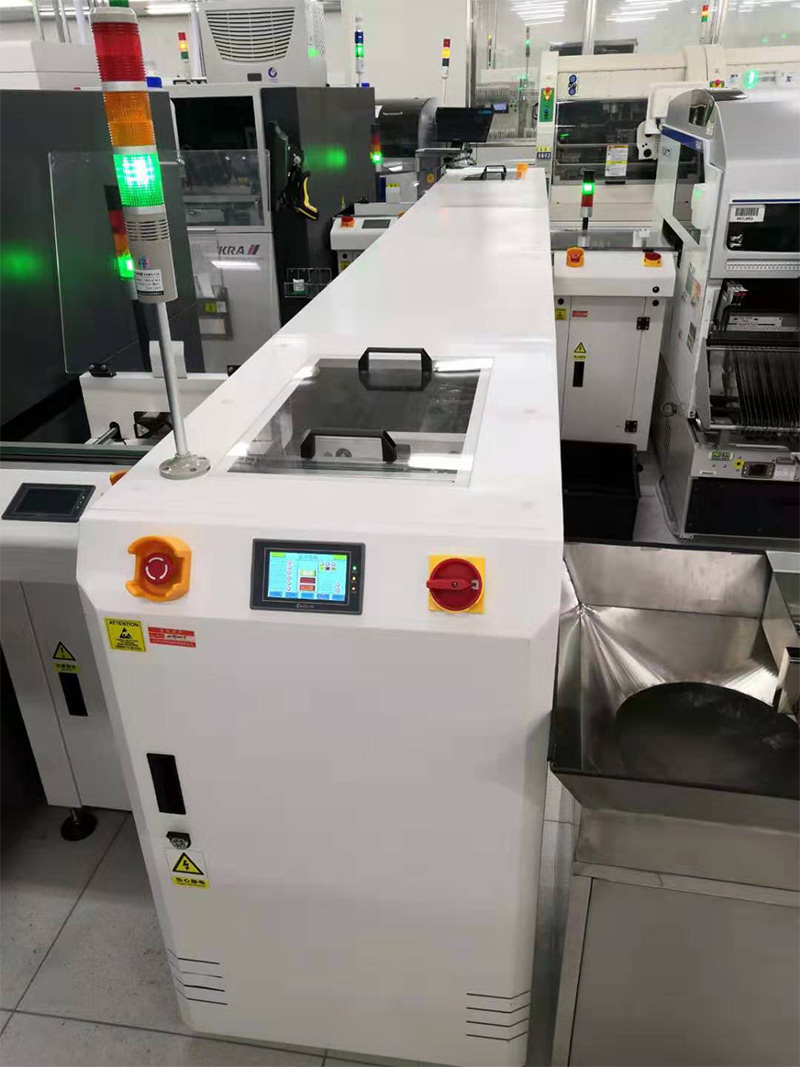

This machine is suitable for multiple dual-track printing machines for one multi-track placement machine or multiple single-track placement machines for one multi-track reflow soldering, etc., to change the direction of the PCB board to different paths.

1. After receiving the board signal from the front machine, the machine starts, and the moving rail of the corresponding position is connected to the board at the specified position

2. After reaching the relevant designated position, a signal is sent, and the belt rotates to receive the substrate

3. After the substrate translation component is connected to the substrate, start the motor

4. The motor sends the substrate translation component to the designated position of the feeding plate according to the equipment setting program

5. The substrate is sent to the next machine by the substrate translation component

Note: The transmission speed can be adjusted!
