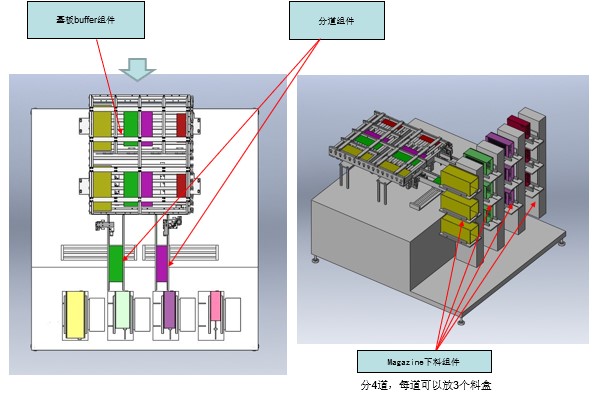

The Magaine unloading assembly moves up and down to store the products from the track of the lane divider in order until the 3 Magaines are full, open the corresponding door, take out the 3 full Magaines, and replace them with empty Magaines.

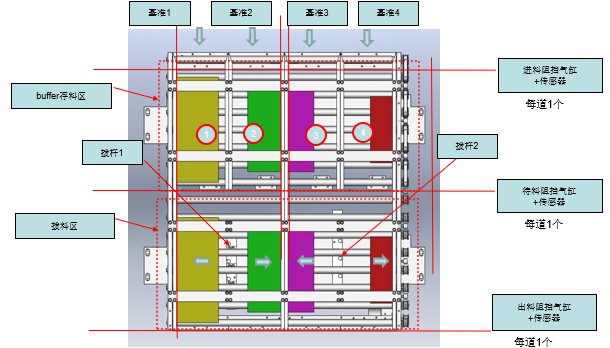

The 4 types of products transferred from the upstream reflow furnace are transferred to the transfer area through the buffer storage area (if there are products in the transfer area, wait in the buffer storage area first), and the first and second products are transferred by the transfer area. Rod 1 is in a row, the 3rd and 4th products are in a row by lever 2

The initial position of lever 1 is in the middle of lanes 1 and 2, and the initial position of lever 2 is in the middle of lanes 3 and 4. The lever 1 pushes species 1 to the left to reference 1, and dial 1 pushes species 2 to the right to reference 2. The lever 2 pushes the species 3 to the left to the reference 3, and the lever 2 pushes the species 4 to the right to the reference 4. Can prevent mixing of 4 varieties.
