Microscope

VM10A-200HD digital video microscope adopts unique anti-stray light and large depth of field technology. It has the characteristics of clear imaging, strong stereoscopic effect, long working distance and wide field of view. It is used with high-definition color CCD camera and TV. Designed with 0.3X, 0.5X, 0.75X, 1.5X, 2X series of additional large objective lenses and 0.35X, 0.5X, 0.75X, 1X, 1.5X, 2X series of photographic eyepieces, according to the requirements of users in different occasions, specially designed with A variety of lighting devices can be selected according to the sample to be observed, such as upper and lower double halogen lamps, upper halogen and lower fluorescent lamps, circular fluorescent lamps, optical fiber cold light sources, LED coaxial lighting and other lighting methods. XY moving stage and image analysis device are also optional. The bracket has a column type and a universal bracket is available.

  • Technical Data
  • Overview

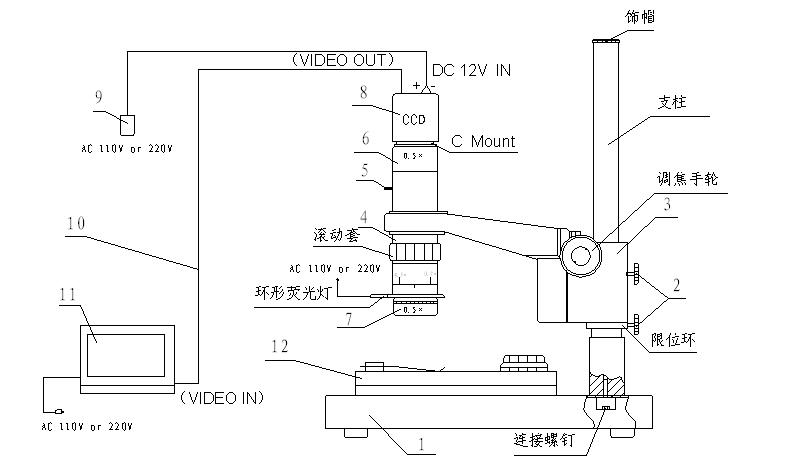

(1) Bracket (2) Fasten the hand wheel (3) Focusing mechanism (4) Main objective lens (5) Knurled screw (6) Photography eyepiece (7) Additional objective lens (optional) (8) CCD camera (optional Purchase) (9) CCD power adapter (optional) (10) Signal cable (optional) (11) Color TV or monitor (optional) (12) XY mobile stage (optional)
